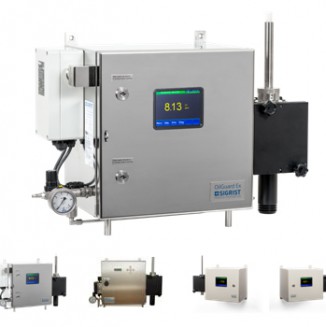

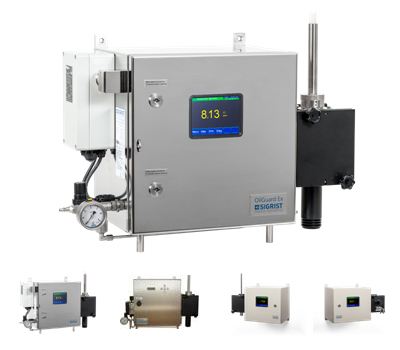

SIGRIST OilGuard SeriesOilGuard – An instrument designed for oil trace monitoring in produced water, return condensate and wastewater discharge. A few models with multiple configurations to fit any needs. Designed to be easy to handle, with very low maintenance and having some of lowest cost of ownership in the market. OilGuard Ex – onshore/offshore application mainly for platform, FPSO and petrochemical plants with Ex requirements. Comes with Ex protection of Ex protection class II 2G Ex px IIC T4 (ex zone 1) with IP 66 as standard. OilGuard Ex M – Oil discharge monitor that complies with IMO resolution MEPC.107(49). Comes with Ex II 2G Ex px IIC Tz(zone 1) with IP 65 as standard. OilGuard – Standard model, mainly used for power plant application or environment monitoring. OilGuard – Closed cell model, mainly used to monitor oil content in condensate. | |

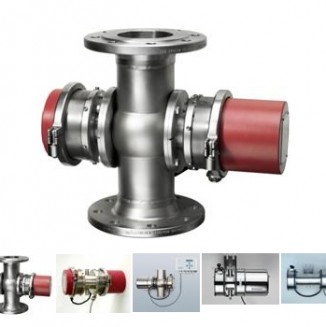

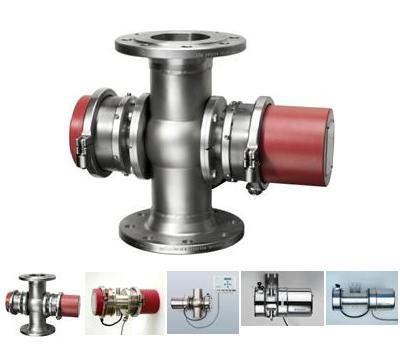

SIGRIST ColourPlus SeriesColorPlus – Instrument designed for quality control in industrial and water treatment process. Uses colour/absorption concept for measurement. Designed to be flexible and can be calibrated in E/m, APHA-Hazen, EBC, ASTM, Saybolt and others. Dual Beam measurement assures stability and accuracy. Capable of measuring almost any kind of chemical based on its coloration. ColorPlus Ex – Bypass model. Extracts sample from pipe line using a probe. ColorPlus Ex – Inline model. Installed directly on the existing pipe. ColorPlus – Bypass and inline model. A non ex version of the above. ColorPlus – Inline model. A non ex version of the above. | |

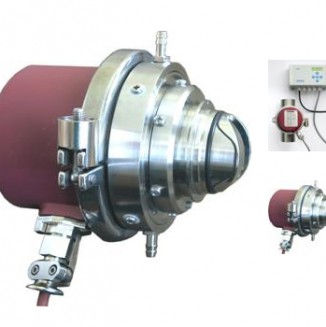

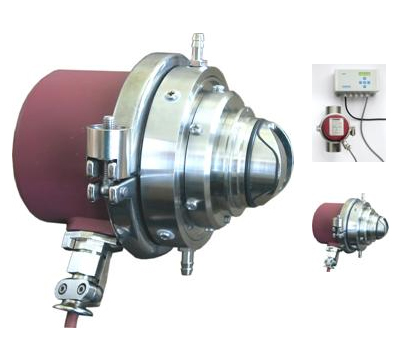

SIGRIST DualScat ExDualScat Ex – monitors turbidity in liquids, using a single light source to detect transmitted light and scattered light at 90° and 25°. This allows for getting information about the particle size causing the turbidity as well as for compensation of color and fouling influence. DualScat Ex – Bypass model. Extracts sample from pipe line using a probe from a tapping point. DualScat Ex – Inline model. Installed directly on the existing pipe. | |

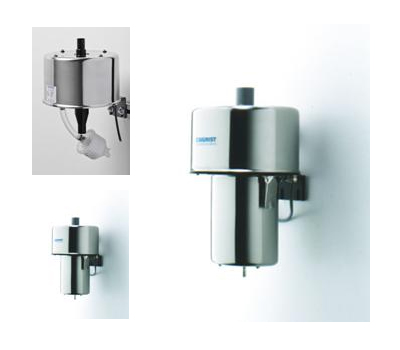

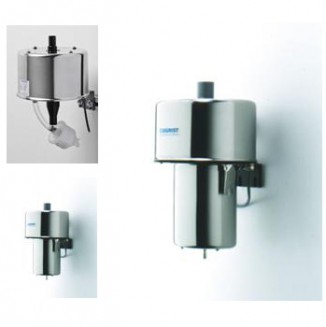

SIGRIST VisGuard SeriesVisGuard – there are 2 types available for different application. Available in extractive model or in-situ model which can complement any type of environment including high risk zones. Oil Mist Detection – Continuous monitoring of oil mist concentration using scattered light principle. Fully complies with the latest IMO code of practice for atmospheric oil mist detectors. Visibility monitor – Continuous monitoring of visibility using scattered light principle Dual-beam method. | |

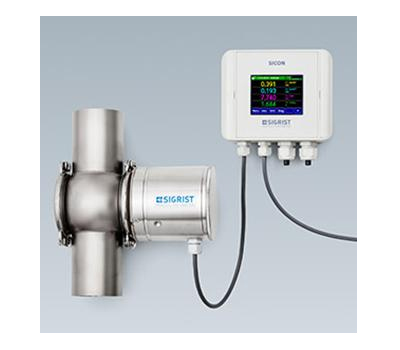

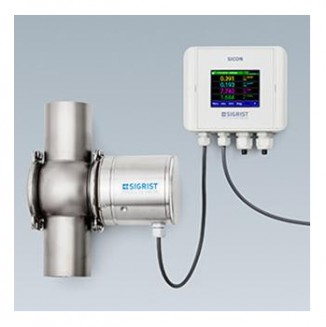

SIGRIST TurbiScat SeriesTurBiScat – monitors turbidity in liquids, with option to include color monitor in EBC. Has a standard Hastelloy and sapphire-glass window in a seal less design. This allows the unit to operate in practically all process applications. Turbidity measurement comes with color compensation. Window fouling is monitored, compensated and can be checked using an intelligent anti-fouling control. This results in very high stability and reading accuracy. Calibration is easily done using a secondary reference standard. Comes with color touch screen control with built in data logger/trending monitor. |
